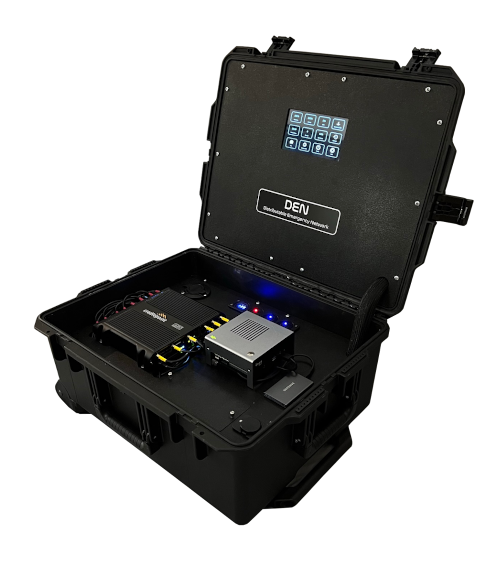

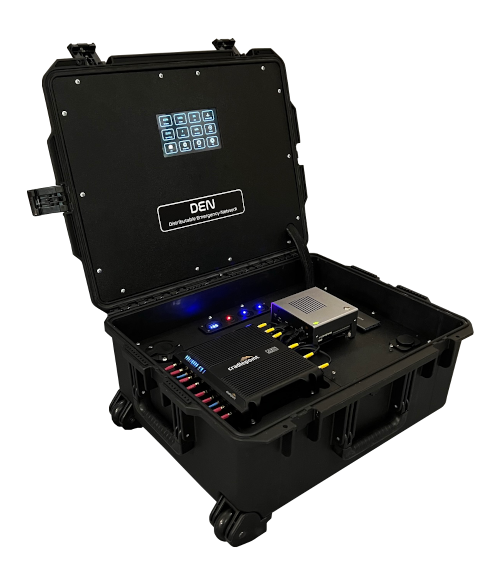

DEN XL (Distributable Emergency Network Extra Large) is our largest portable DEN Platform. Rugged, mobile, and powerful, DEN XL is built to support large command posts, TOCs, and medium EOCs.
Software: Full DEN Suite
Simultaneous users: 1-50
Max WiFi devices: 256
Max VOIP connections: 40
SIM Slots: 4
Cellular load balancing: Yes
Touchscreen control: Yes
Battery life: 20 hours
24/7 support: Yes Download Brochure Download Spec Sheet
Improve Situational Awareness
DEN XL's built-in chat application, file server, and collaborative mapping software promote information sharing while the optional VOIP phone system maintains consistent and reliable communication.
Build a Common Operating Picture
DEN software helps users combine internal and external data sources to create a visual and easy to share common operating picture.
Maintain Continuity of Operations
DEN XL helps agencies maintain back-up copies of important documents and plans while providing access to mission-critical applications under even the most austere conditions.
• 40Ah Lithium Iron Phosphate Battery
- Up to 30 hours of battery life
- Service life of 2000+ charge cycles at 5-10+ years
• HDMI Touchscreen control panel
- Monitor power usage and bandwidth
- Set WiFi password and SSID
- Kick users
- Run backups
• Dual interference reducing antenna arrays inside lid
- 8 cellular MIMO, 2 GNSS, 6 WiFi MIMO
• Pelican Storm iM2950 rolling case
Software
• Raptor SSO (single-sign-on) user management system
• DEN Chat
• ownCloud File Server
• Pelorus Collaborative Mapping Software
• SARTopo Offline
• Offline high-definition orthoimagery and street maps
Service & Support
• 24/7 service and support
• Automatic software and firmware updates
• Instruction manual
